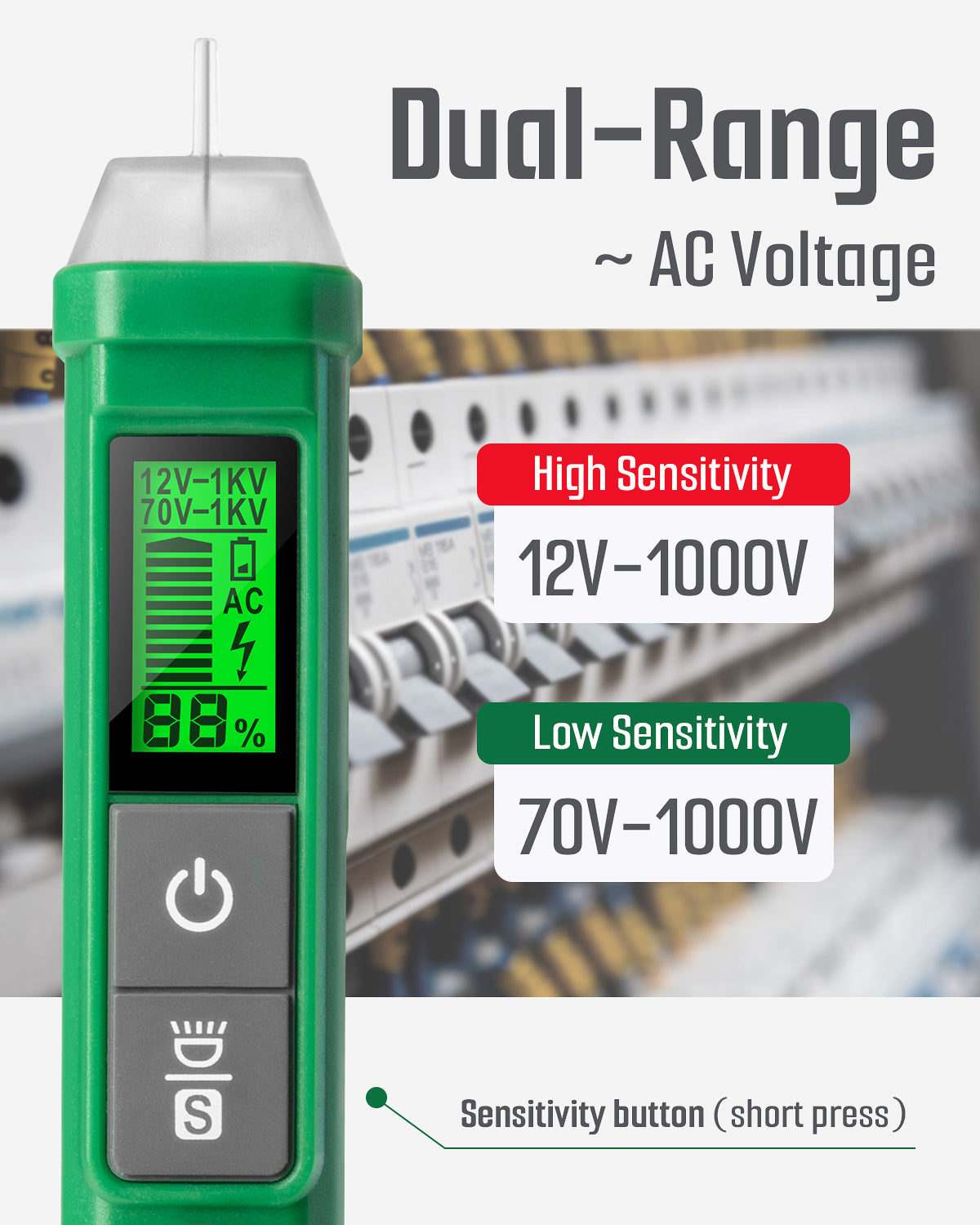

TN-213 suits dual voltage detection ranges. Its detection range is 12-1000V at high sensitivity and 70-1000V at low sensitivity.
High & Low Sensitivity
Low range can be applied to motorized curtains, irrigation wiring, outdoor low-voltage lighting, etc.
You can adjust the sensitivity mode by pressing the S button. As turned on, the tester will be on high-sensitivity mode by default
Visual & Audible Alert
When voltage is detected, the tip emits a red light, the screen turns red, and an alarm sound is triggered. As the detected voltage increases, the red light and alarm sound frequency accelerates.
Meanwhile, the LCD screen's percentage value and bar graphs also increase. It could be applied to test AC voltage in cables, wires, circuit breakers, lighting fixtures, switches, and non-tamper-resistant sockets
0.5s Quick Response
It could be applied to test AC voltage in cables, wires, circuit breakers, lighting fixtures, switches, and non-tamper-resistant sockets.
NCV & IP66
The TN-213 voltage tester pen is equipped with an NCV probe to distinguish between live and neutral wire safely.
CAT Ⅲ 1000V, CAT Ⅳ 600V, and RoHS certified.
The electrical tester is rated as IP66, providing both waterproof and dustproof capabilities.
The backlit screen enhances visibility, enabling easy reading even in low-light environments.
A bright flashlight ensures that circuit testing can be conducted even in dark environments.
Easy to Carry
It's pocket-sized and comes with a pen hook so that you can take it anywhere.
The voltage tester comes with a high-quality battery to extend its life.
|Certification||CE, UKCA, RoHS|
|CAT Ratings||CAT Ⅲ 1000V, CAT Ⅳ 600V|
|Ingress Protection (IP) Rating||IP66 Water and Dust Resistant|
|Dual-Range||12-1000V at high sensitivity; 70-1000V at low sensitivity|
|Working Environment||0 ~ 40 ℃|
|Working Altitude||< 2000 m|
|Storage Environment||-10 ~ 60 ℃|
|Instruction Language||English, German, French, Italian, Spanish, Japanese(6 languages)|
|Package Dimensions||1.61 x 1.02 x 6.22 inches; 2.82 Ounces|

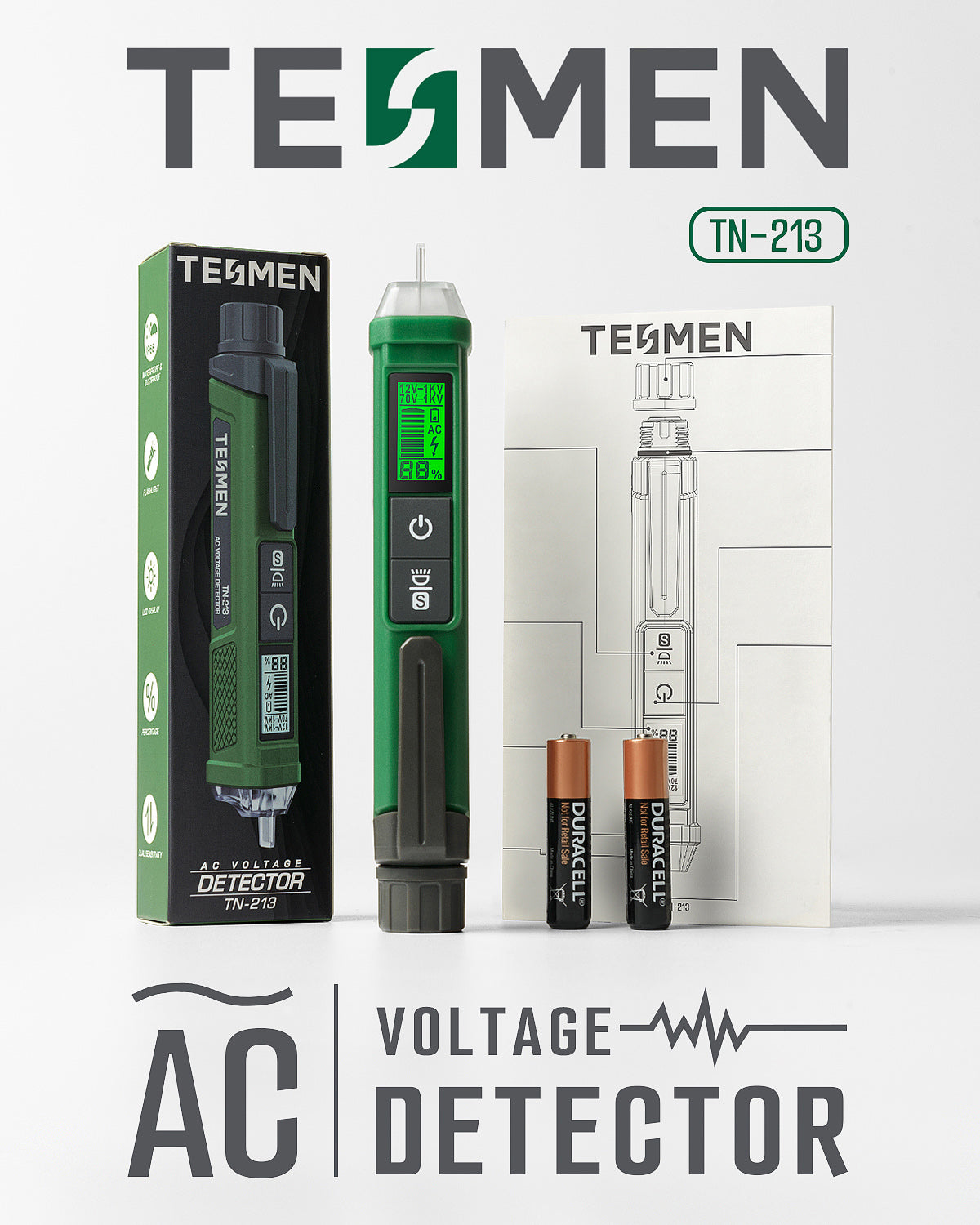

|Package Listing||1x TN-213 Voltage Tester, 2x AAA Batteries, and 1x User Manual|
|Warranty||3-year Warranty and Lifetime Technical Support|
